Objects of the value stream toolbox > Customer and supplier

Contents

1. Brief description

The Supplier (push) object is a kind of inexhaustible source of products and materials.

2. Procedure and control description

Supplier (push) does not require or waits for external orders.

It acts as a source object where required quantity of parts (Number Parts in input) are produced at given time interval (Cycle time in input) through the simulation.

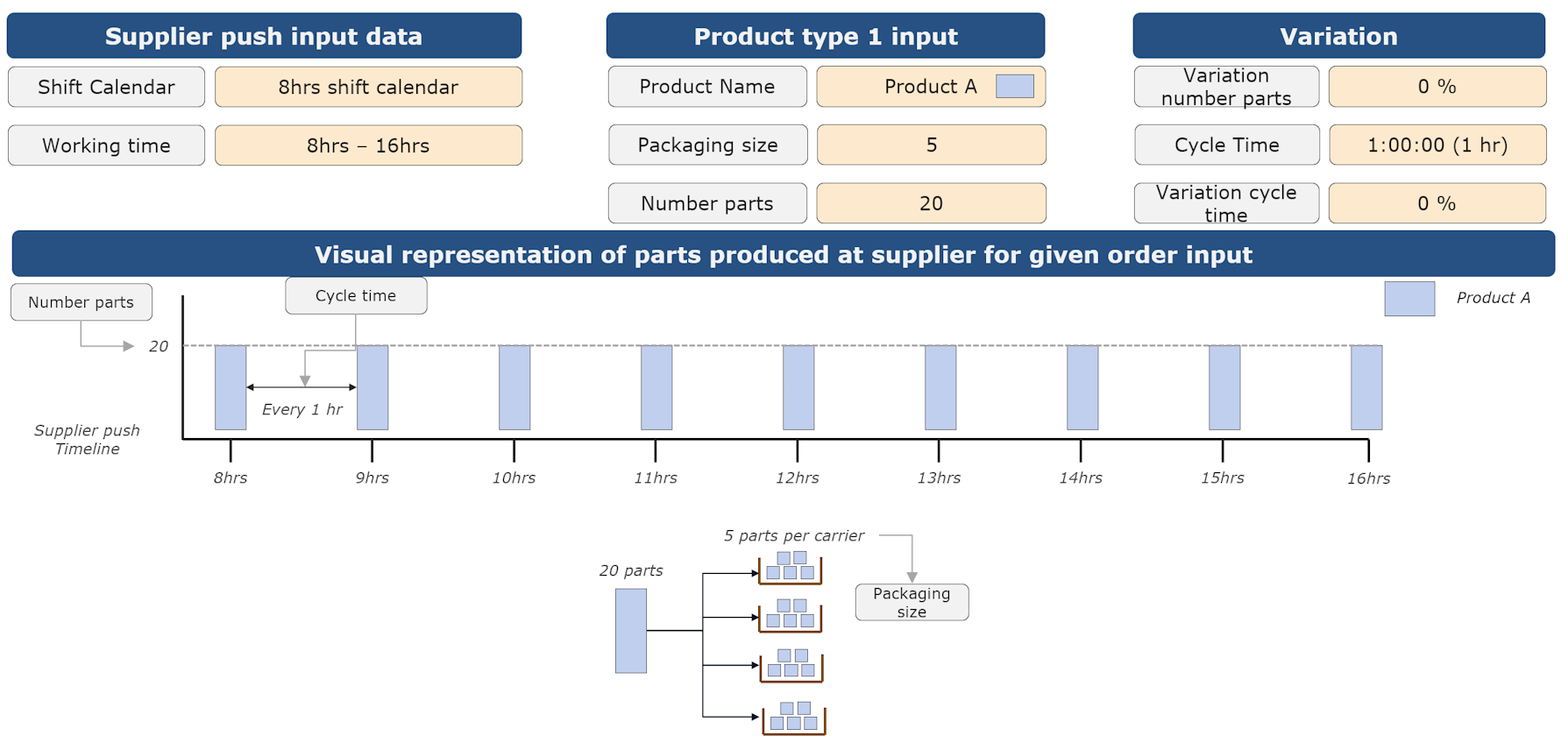

Supplier (Push) without any variation:

Every 1 hour once Product A is produced and transferred to next successor object.

Total of 20 parts is created / produced at the supplier push object without any external orders flowing in from the PPS.

All parts are transported using carriers. With a packaging size of 5, each carrier carries 5 parts from the supplier to the successor object.

The supplier push object continuously pushes the created parts, regardless of the successor or downstream object’s functional status.

20251113_supplier_push_folie_1

Figure 1 - Without any variation

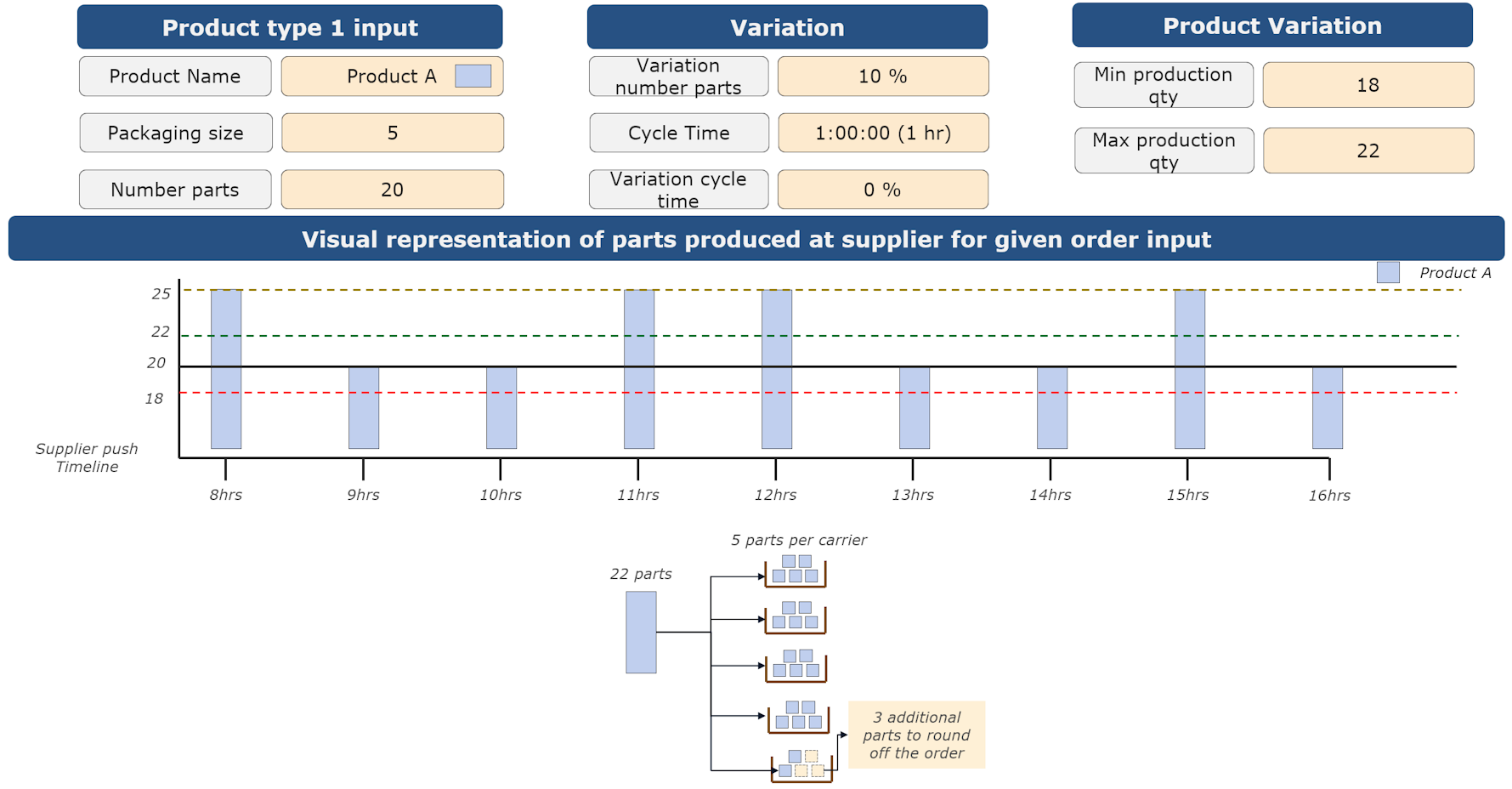

Supplier (Push) with variation in number of parts:

With a 10% variation in production, the output ranges from 18 to 22 parts per hour. The packaging size acts as a rounding factor.

Since each carrier must hold 5 parts, the order quantity is rounded accordingly. For example, when 22 parts are produced, the order is rounded up to 25 parts.

Similarly, when 18 parts are produced, the order is rounded up to 20 parts.

20251113_supplier_push_folie_2

Figure 2 - With variation in number of parts

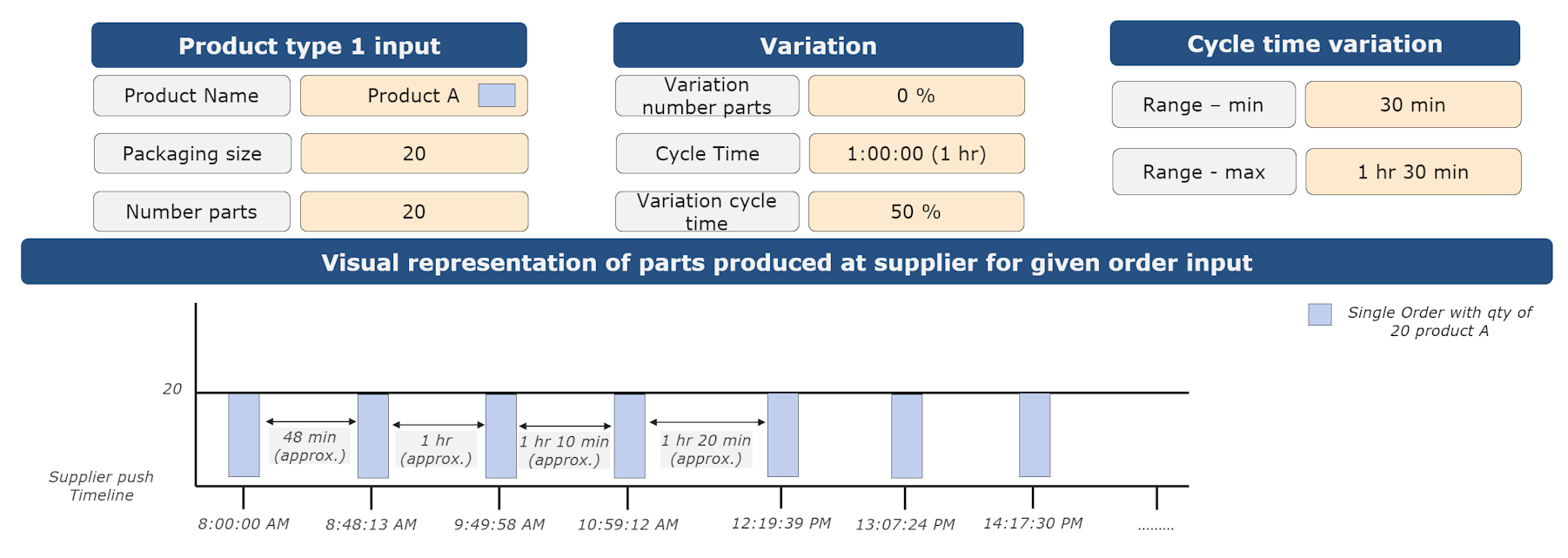

Supplier (Push) with variation in order interval:

With variation in cycle time, orders will not be trigger every one hour. Based on randomization , orders could be triggered in interval which ranges from 30min to 1 hr 30 min.

20251113_supplier_push_folie_3

Figure 3 - With variation in order interval

3. Parametrization

20221213_zulieferer_push_mit_parameter_EN

Figure 4 - Supplier push

Process Parameter	Required	Description
Name	no	Name of the object
Products	no	Products of the object
Shift calendar	no	Allocation of working hours and rest periods
Comment	no	Custom notes and annotations

Product Parameter	Required	Description
Product	yes	Base product
Packaging size	yes	Required quantities of products which must be placed in one carrier for transportation to next downstream object
Number Parts	yes	Quantity of products to be produced
Variation number parts [%]	yes	Deviations in quantity of products to be produced
Cycletime	yes	Time interval between product delivery
Variation Cycletime [%]	yes	Deviations in the time interval between product delivery (in %)

4. Connection types

See chapter Possible connections to objects.
