Figure 1 shows the model view underlying the value stream analysis (Figure 2).

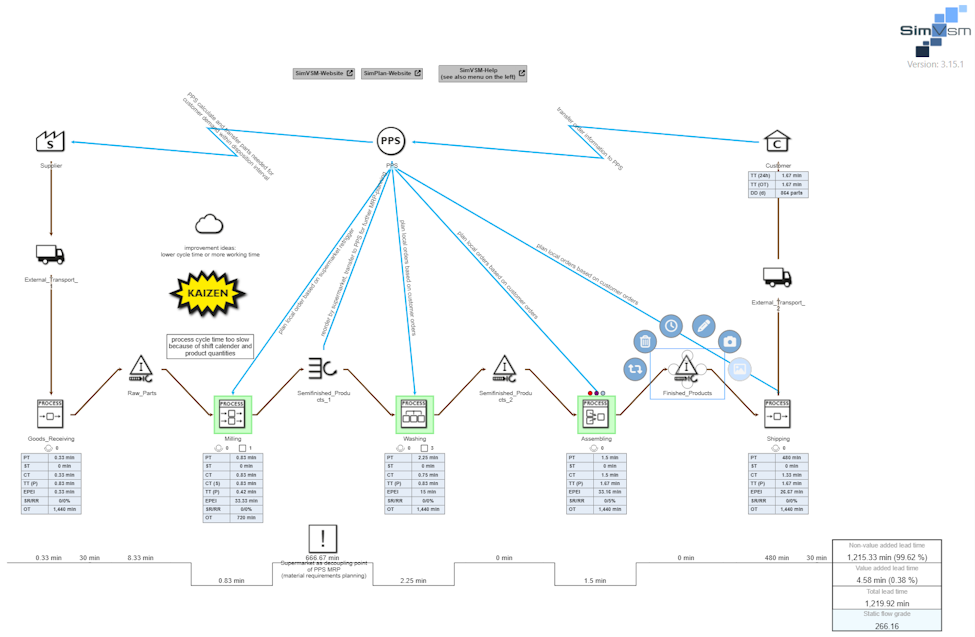

Figure 1 - Model view
The individual objects in Figure 2 are described in more detail in the Object attributes chapter. The transferred process boxes for processes and supermarkets are arranged from left to right in a horizontal line.
The sorting is determined using the X and Y positions of the "original" value stream objects in the value stream modeling area.

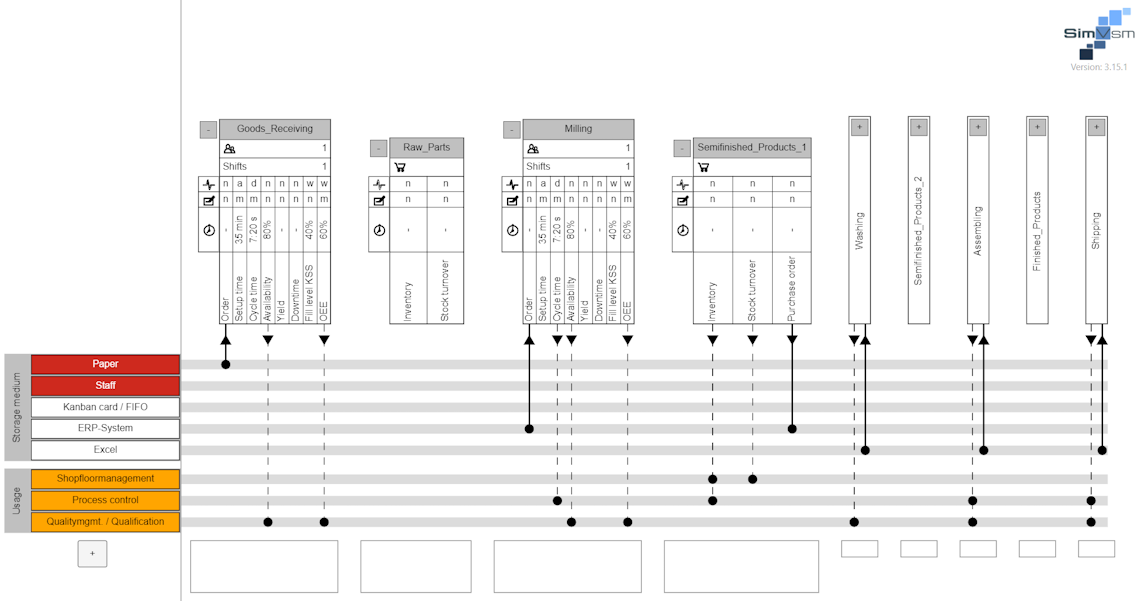

Figure 2 - Value stream analysis
