This results section contains a data table with results for a dynamic measurement section, which can be defined in the modeling area using a start and end object.
A dynamic section measurement measures the throughput times for all parts that pass completely through a section. From this, an average value is calculated for the result overview.
In addition, the cumulated value-adding static process time is determined for the measuring section. The calculation formula is similar to the formulas from the static flow grade calculation.
From both values - average part throughput time and cumulated static process times for all processes contained in the section - the dynamic flow grade is calculated as a quotient.
In addition to the flow grade, it is also specified whether the section contains branched paths.
This should be noted as a corresponding hint that processes modeled in parallel may be included together in the cumulated process time.

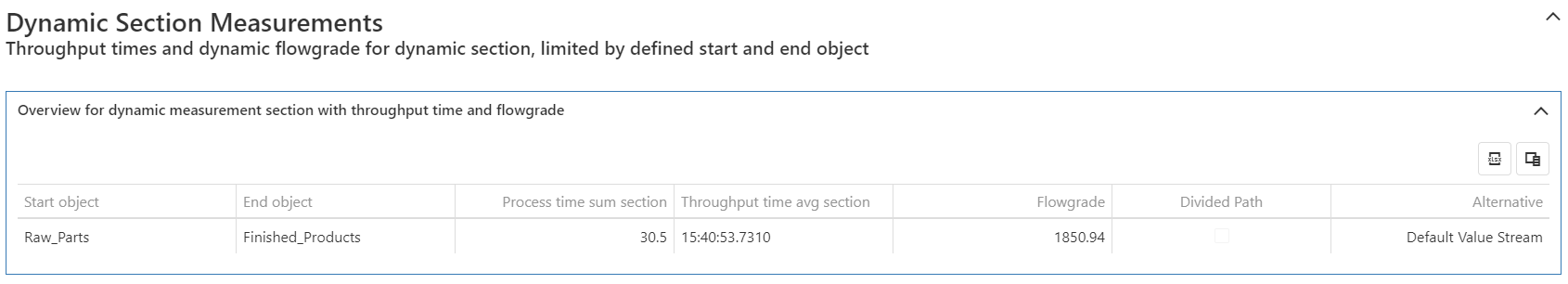

Figure 1 shows an overview of individual distributions of the key figure Dynamic Section Measurements
Figure 1 - Dynamic section measurements
